Toyota LC76 sERIES Roof Conversion

Height & Weight: Our new slimline LC76 Roof Conversions add a mere 80mm of height and only 85kg of weight to the vehicle.

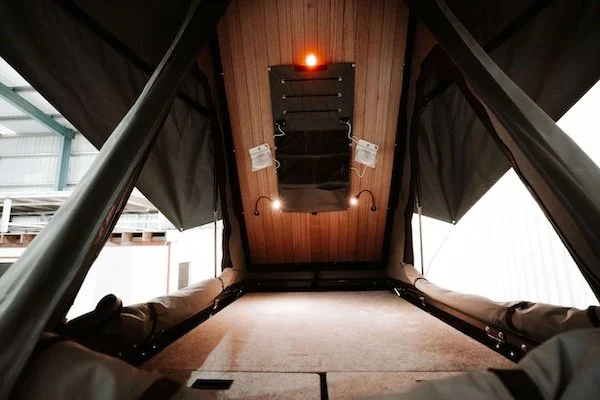

Exceptional Headspace: The roof lifts to 55° so it is designed for you to sleep with your head up the hinge end so you not only wake up to a view, but you simply slide down the bed to exit. The conversion has over 1800mm of headspace, just inside the tent! You’ll no longer hit your head when sitting up in bed, and you can change your clothes upstairs without needing to push the bed up to change downstairs.

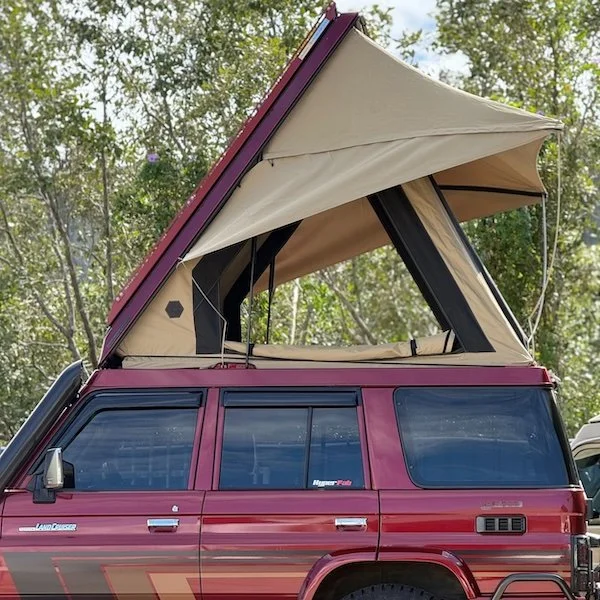

Tent: Unzip and roll down the entire tent for the ultimate safari experience. With one zip windows, your awnings can be popped up in a matter of seconds. We’ve also designed the largest windows on the market to maximise airflow and to open up the tent.

Vehicle Integrity: Our roof conversions are engineered and ADR compliant. We also follow the National Code of Practice for Light Vehicle Construction and Modification, which allows our customers to drive on all roads in Australia without needing to obtain further vehicle compliance.

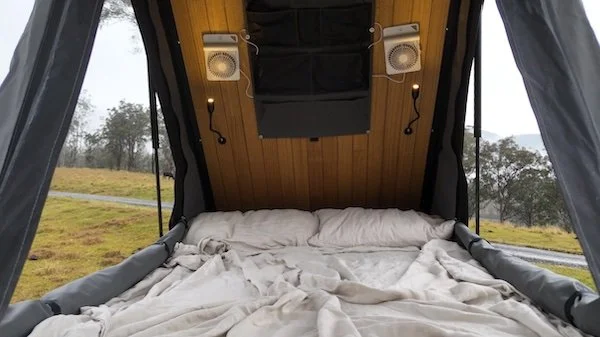

Charging and Stowage: Each roof conversion comes with a colour-matched overhead organiser and usb charging pots. All organisers are capable of stowing books, bottles, hats, phones, wallets and even a tablet or laptop for those wet and windy Netflix nights.

Ultimate Weather Protection: The main wrap-around awning supplied as standard can be zipped on and off in seconds. To further shelter the sides of the tent from blowing rain and harsh sunlight, we have designed zip-on/zip-off side awnings that attach to the main awning and tent. Our awnings are easily removed or left attached when opening and closing the conversion.

Customisable Colours: Choose your colour preferences for your tent and frame. You have the choice between a sand or grey coloured tent - both now come with black window trimmings.

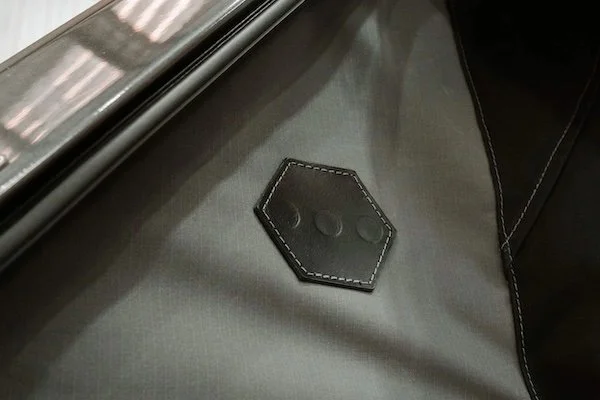

Tent: 380GSM poly/cotton 95% light-blockout ripstop canvas. Designed and engineered in Australia and proven to withstand the country’s harshest conditions. It is mould, rain and UV resistant. The tent contains anti-tear midge mesh in the windows, double reinforced seams and oversized zips for longer lasting wear.

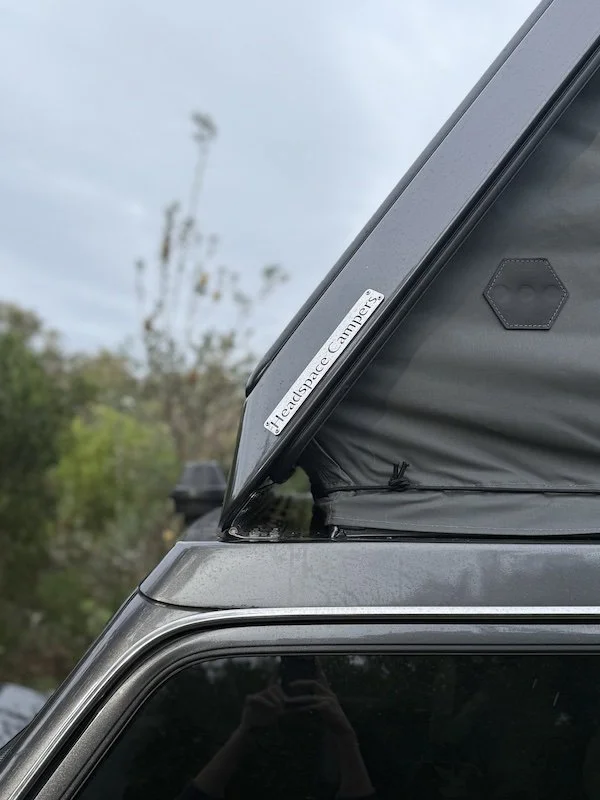

Frame: Durable powder coated folded 4mm aluminium frame reduces the overall weight while also maintaining adequate strength to minimise vehicle body roll. Use of an industrial grade double point rubber seal ensures adequate ingress protection from the elements, including the infamous outback bulldust. Our automotive two pack spray finish provides a much cleaner, automotive finish.

Bed Frame: Carpet-lined, lightweight, resin-infused composite bed and access door base that reduces the overall roof conversion weight by 25%. This product is used in marine and aviation manufacturing due to its high strength to weight ratio and fatigue expectancy.

Roof Lifting Struts: 28mm heavy duty roof lifting struts pressurised to your constant roof load. Optional secondary struts for lifting the roof when carrying excess weight on long overhaul trips are available.

Access Doors: Dual internal access doors that can remain open while sleeping and can also function as tables when the bed frame is pushed up towards the ceiling.

Bed: Accessible from inside the vehicle to provide protection from the elements. Bed can be pushed up towards the ceiling to provide a larger living area downstairs. Due to the high angle tilt, you are able to comfortably walk around the entire vehicle from the back of the front seats to the rear doors.

Hinges and Latches: Stainless steel exterior hinges and latches to prevent corrosion.

Mounting Brackets: Optional lower frame mounting brackets for typical roof rack side-mounted equipment such as a 270° stand-alone awning and shower tent.

Closed Capacity: Space for bed linen - sheets, blankets and pillows.

Open Capacity: Designed to comfortably fit 2 adults and 1 or 2 little ones.

Added Height: 80mm.

Added Weight: 85kg.

Manufacturer and ADR Compliance: The design of our roof conversion is engineered and complies with the Australian Design Rules (ADRs). Headspace Campers also adheres to the National Code of Practice for Light Vehicle Construction and Modification (VSB14). As such, your vehicle will be certified to travel in all states and territories within Australia. Please contact us to discuss engineering and compliance requirements in other countries.

Roof Rack Requirements: A Headspace Camper does not impact the structural integrity of your vehicle. Therefore genuine Toyota roof loading capacity remains the same at 150kg, over and above the weight added by the conversion. Users must adhere to vehicle manufacturer guidelines for static and dynamic roof loading requirements when loading their roof.
